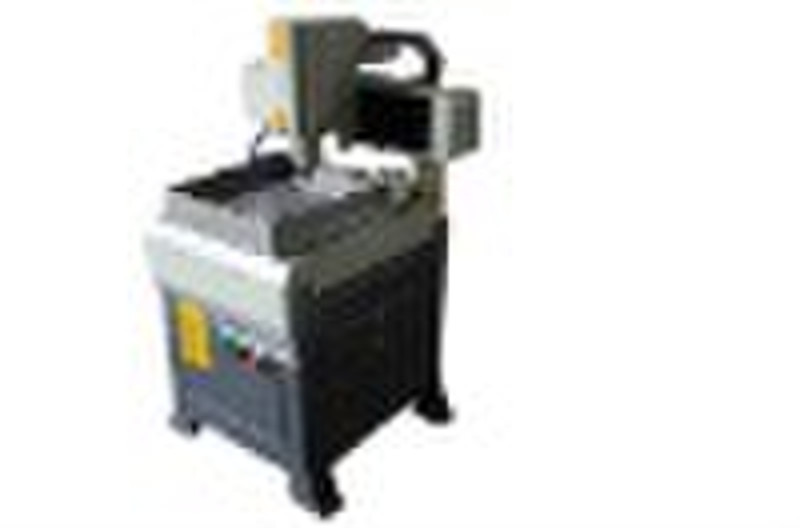

CNC metal engraving machine

CNC metal engraving machine Characteristic1.high accuracy ball bearing guide screw of taiwan,minimize the slit.2.imported linear rail,self lubricating glide.3.our routers have the features of recarving after stop and the power failure may be restored.4.unique preservation way of the zero point.5.use for long time and no distortion.6.this type is suitable for metalPerformance parameter:numberDescriptionparameter1XYZ working area300*300*80mm2Table size420*560mm3XYZ travel positioning accuracy±0.05mm4XYZ repositioning positioning accury±0.05mm5lathe tableAluminium + PVC6lathe structureCast iron7drive system X-Y axisBall screw8drive system Z axisBall screw9Spindle power1.5KW10Max velocity8m/min11Max working speed6m/min12Spindle speed0-24000rmp13work modeStepper14Working voltageAC220V15Command languageG code16InterfaceUSB17Operating systemNcstudio(weihong)18Flash memory12819X-Y resolution0.025mm20Software environmentWentai type3 artcam21Running environmentTemperature:0-45°C22Packing size810*780*950mm23Net weight100kg24Gross weight135kg
